How OAuth v1 Works
OAuth v1 authorization works as follows:- The XO Platform obtains an unauthorized request token from the web application.
- The XO Platform redirects the user to a login dialog at the web application.
- The user authorizes the request token, associating it with their account.
-
The web application redirects the user back to the XO Platform.
- The XO Platform exchanges the request token for an access token.
-
The access token allows the XO Platform to access a protected resource at the provider, on behalf of the user.
Configuring oAuth v1 Authorization
- Open the assistant for which you want to configure an Authorization profile.

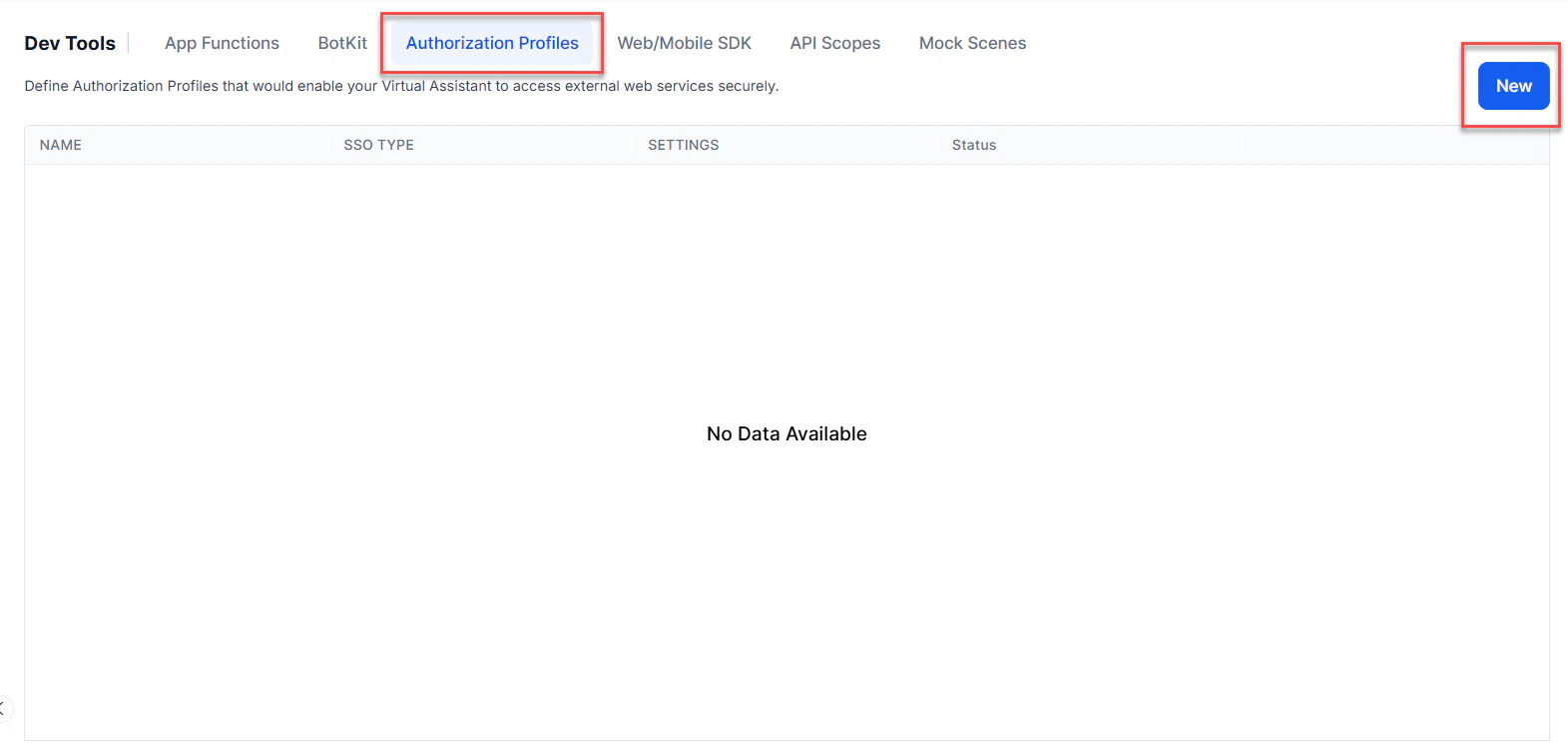

- From the left menus, click App Settings, then select Dev Tools > Authorization Profiles.
- Click New to open the New Authorization Mechanism dialog.
- In the Authorization Type drop-down list, select oAuth v1.
Defining Configuration Fields

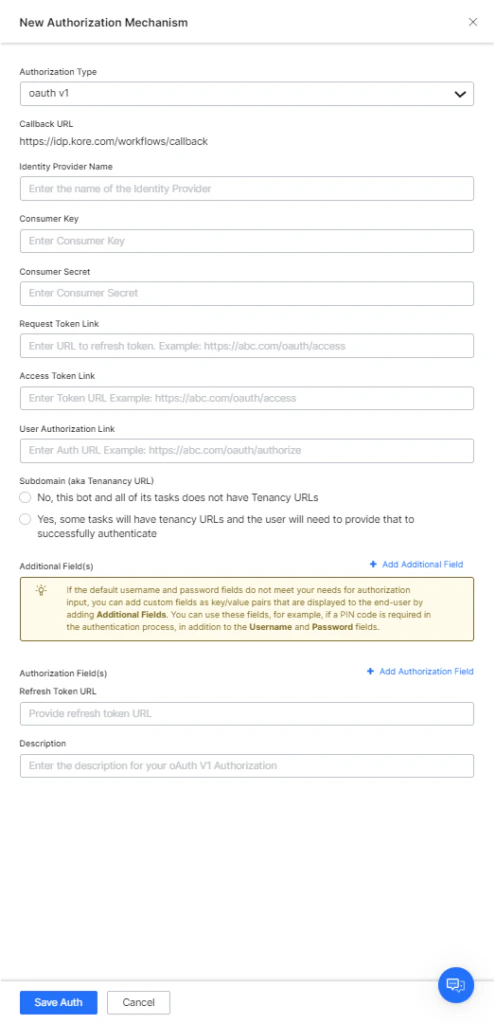

To define oAuth v1, configure the fields described in the following table.| FIELD NAME | DESCRIPTION |
|---|---|
| Authorization Type | Set to oAuth v1. |
| Callback URL | The URL used by the web application or web service to redirect the end-user after authorization is complete. The value https://idp.kore.ai/workflows/callback/ is provided as a read-only value by the XO Platform when you define oAuth v1 settings. |
| Identity Provider Name | The name of the web application or web service, for example, Twitter. This field is required. This is the name under which the authorization profile displays within the XO Platform. |
| Consumer Key | The value provided as the XO Platform identification to the web application. This field is required. |
| Consumer Secret | The secret value provided by the XO Platform to establish ownership of the Consumer Key. This field is required. |
| Request Token Link | The URL used by the XO Platform to obtain an unauthorized request token. The request token is a value used by the XO Platform to obtain authorization from the end-user to obtain an access token. For example, https://{tenant}.example.com/oauth/request_token. After end-user authorization, an access token can be requested by the XO Platform. This field is required. |
| Access Token Link | The URL used to exchange the end-user authorized request token for an access token. The access token is the value used by the XO Platform to gain access to the web application or web service on behalf of the end-user, instead of using the end-user credentials. For example, https://{tenant}.example.com/oauth/access_token. This field is required. |
| User Authorization Link | The URL used to obtain end-user authorization for the XO Platform to access the web application or web service using the access token. This field is required. You can use dynamic fields, path parameter fields, query fields, and so forth, for example: https://platform.example.com/sap/opu/odata/sap/{{authfield1}}/?$format=json or https://{tenant}.service-now.com/api/now/v1/table/incident |
| Access Using a Connector | Select Yes to enable access for AI Agent using the Kore.ai Connector agent. This option is only visible if a Kore.ai Connector agent is configured and enabled in your enterprise on-premises network. |
| Refresh Token URL | A URL that lets the XO Platform get new access tokens without asking the user to log in again. |
| Description | Enter a description for your authorization task. |

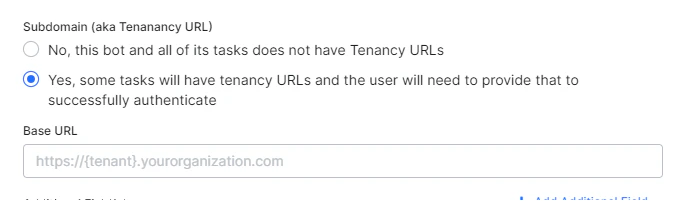

Defining Tenancy
If required, in the Subdomain section, select Yes if the base URL for a web application or user interface uses a tenant name in the URL. For example,platform is the tenant organization for a web service that uses subdomain-based tenants, such as www.platform.example.com.
In the following example configuration, the tenancy URL contains the {tenant} organization placeholder.
Adding Additional Fields

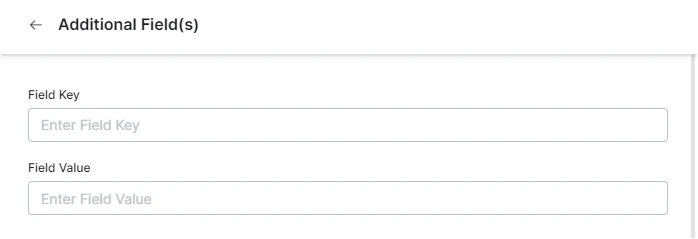

Click Add Additional Fields to open the Additional Fields dialog and enter one or more key/value pairs representing additional authorization input fields. If the default username and password fields do not meet your authorization input needs, add custom fields as key/value pairs displayed to the end-user. For example, add a PIN code field in addition to the Username and Password fields.
- Field Key: The name of the custom field to specify for authorization.
- Field Value: The value for the custom field to specify for authorization.
- Click Done to save the Additional Field.
Adding Authorization Fields

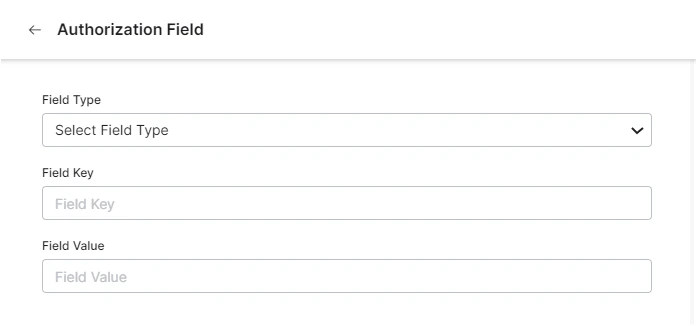

By default, no authorization fields are configured as part of the header of the request message. If your request requires authorization fields or the expected authorization is not part of the header (for example, social security number or PIN), click Add Authorization Fields and define the fields.
-
In the Field Type field, select one of the following depending on where in the request message the authorization fields are required:
- Header: The assistant expects the authorization fields as part of the header of the request.
- Payload: The assistant expects the authorization fields as part of the content of the body of the request.
- Query String: The assistant expects the authorization fields as a query in the body of the request.
- Path Param: The assistant expects the authorization fields as part of the URL path for the request.
- In the Field Key field, enter the name of the field for the selected Field Type.
- In the Field Value field, enter the value for the Field Key specified.
- Click Done. The new authorization field is added in the Authorization Fields section.
Testing the Authorization

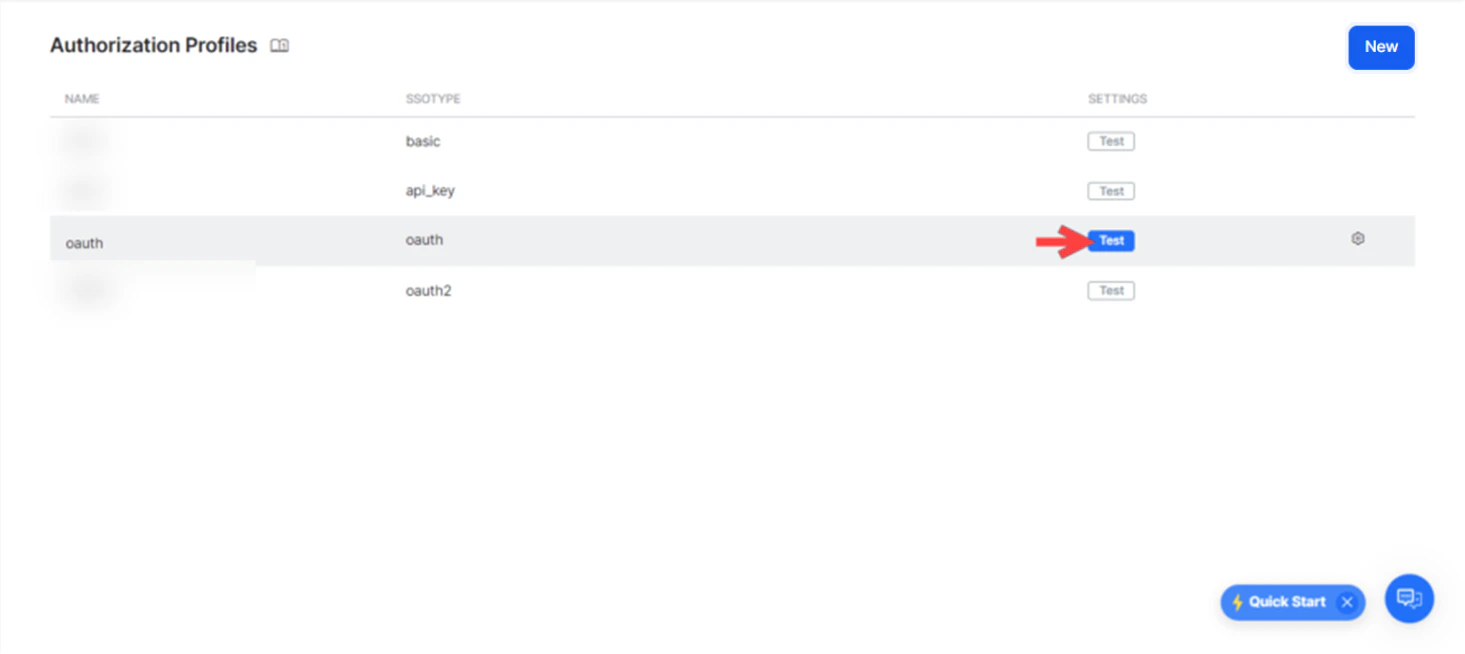

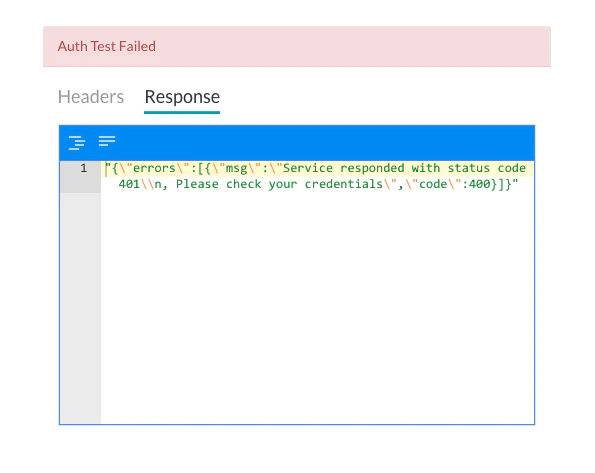

After saving the authorization, test it on the Authorization page by clicking Test before continuing to develop the remaining steps of your assistant. The test is executed using the authorization token URLs and the Consumer Key and Consumer Token. If tenancy was defined, the Test Authorization dialog is displayed.
