Google Drive Connector

Back to Search AI connectors list

The Google Drive connector for Search AI extends search capabilities to content stored in Google Drive cloud storage, providing a seamless search experience across your drive files.

Specifications

Specification	Details
Repository type	Cloud
Supported API version	Google Drive API v3
Supported file types	.doc, .docx, .ppt, .pptx, .pdf, .txt, .html (password-protected files not supported)
RACL support	Yes
Auto permission resolution	Yes

Setting up the Google Drive connector involves two steps:

1. Set up and enable access to Google Drive cloud storage.
2. Configure the Google Drive connector in Search AI.

Step 1: Set Up Google Drive Access

1. Sign in to the Google Cloud Console and create a Google Cloud project. Skip this step if using an existing project.

2. Find the Google Drive API and enable it in your Google Cloud project.

3. Configure OAuth consent to enable OAuth 2.0 authentication.

4. In the Google Cloud console, go to Menu > Google Auth Platform > Branding. Provide the application name, email address, app logo, and developer contact information.

5. Add the Search AI domain to Authorized domains.

6. Under Data Access, click Add or remove scopes and select the following Google Drive API scopes. Click Update.

   • .../auth/drive.file
   • .../auth/drive.appdata
   • .../auth/drive

7. Go to the Audience page and set the user type to External.

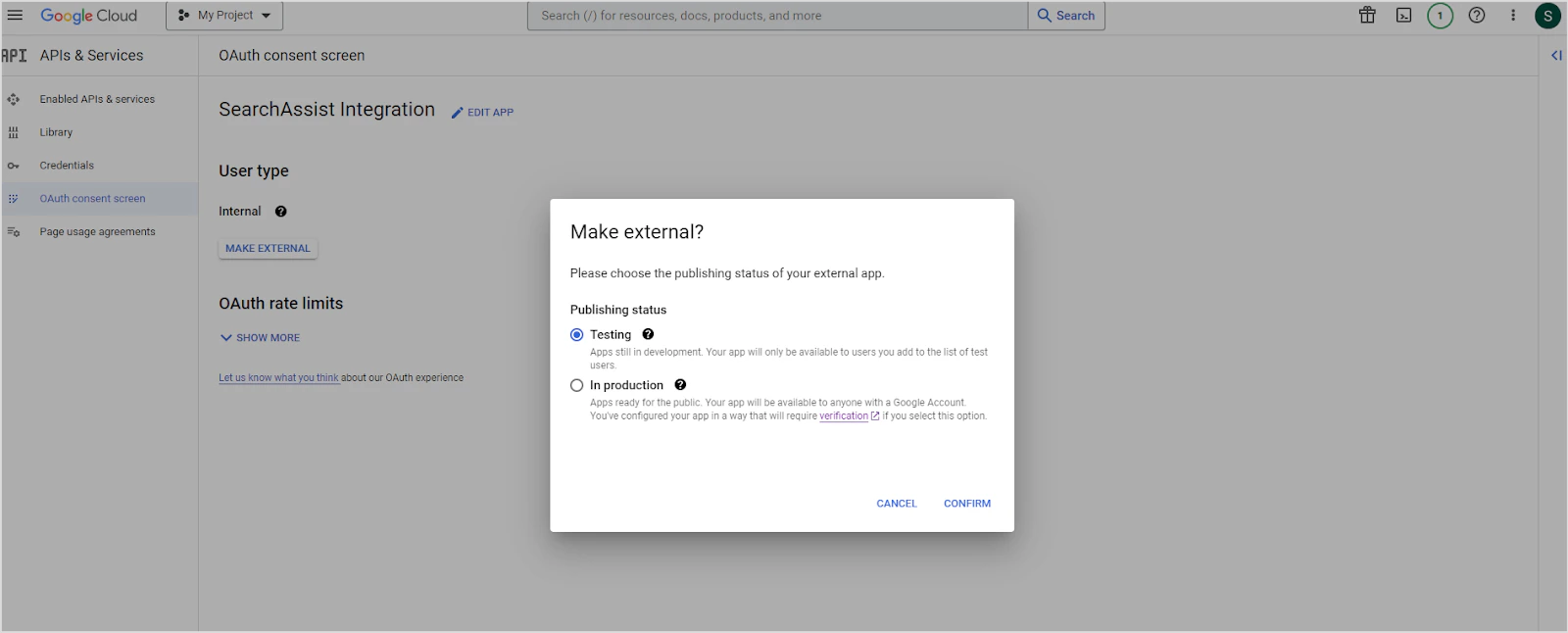

8. Set the publishing status. In Testing mode, only added test users can access the app. In Production mode, the app is available to all Google account users.

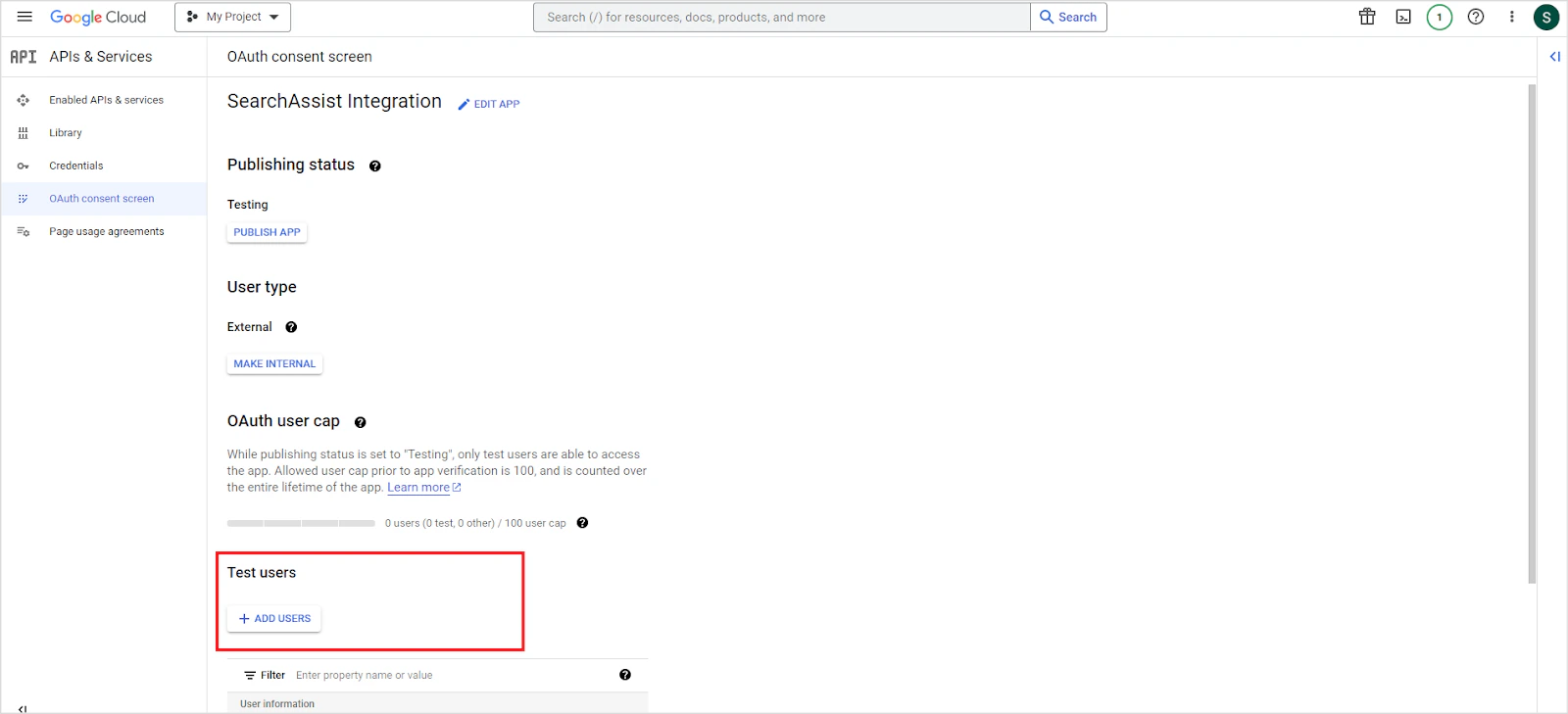

   To add test users in Testing mode, click ADD USERS on the same page.



9. Navigate to the Clients page and create a new client. Set Application type to Web Application, give it a name, and add one of the following as the Authorized redirect URI based on your region:

   • JP Region: https://jp-bots-idp.kore.ai/workflows/callback
   • DE Region: https://de-bots-idp.kore.ai/workflows/callback
   • Prod: https://idp.kore.com/workflows/callback

10. Click Create. Download the generated credentials file (JSON format), which contains the client ID and client secret.

Step 2: Configure the Google Drive Connector in Search AI

1. Go to Content > Connectors and select Google Drive.

2. Configure the authorization parameters:

   Field	Description
   Name	Unique name for the connector
   Authorization Type	OAuth 2.0
   Grant Type	Authorization Code (supported for Google Drive)
   Client ID	Client ID from the downloaded credentials file
   Client Secret	Client secret from the downloaded credentials file

3. Click Connect to establish the connection.

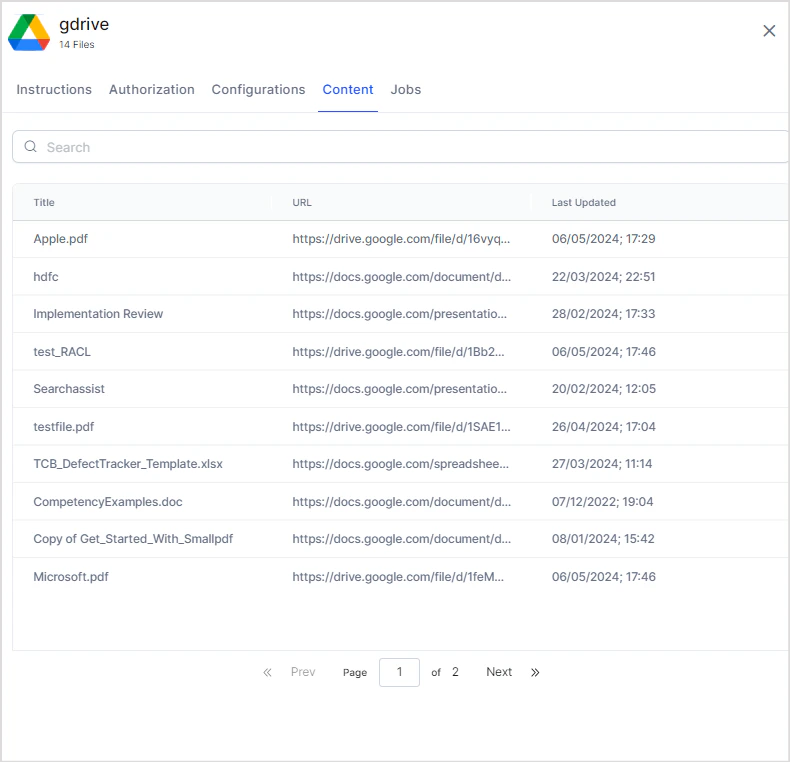

Once connected, go to the Configurations tab and click Sync Now to synchronize content. View ingested content on the Content tab.

Content Ingestion

On the Configurations tab, configure the following synchronization settings:

Setting	Description
Schedule Sync	Enable to automatically sync content at regular intervals. Set the time and frequency.
Sync All Content	Ingests all data from Google Drive.
Sync Specific Content	Ingests only content matching defined filter rules. Click Configure to set up rules, then click Save and Test.

Content Filtering Rules

Each filter rule specifies a drive location and one or more conditions.

Drive Location

Option	Description
User Drive	Only locations owned by the connected account
Shared Drive	Only locations shared with the connected account
All Drives	All locations from both User Drive and Shared Drive
User Domain	All locations within the user’s domain

Conditions

Define conditions using a parameter, operator, and value. Supported parameters:

Parameter	Description
Folder ID	Ingest files from specific folders. Find the folder ID in the Google Drive URL after folders/. Example: for https://drive.google.com/drive/folders/1dyUEebJaFnWa3Z4nXXXXAXQ7mfUH11g, the ID is 1dyUEebJaFnWa3Z4nXXXXAXQ7mfUH11g.
Mime Type	Ingest a specific file type (e.g., application/pdf). Supported: application/msword, application/pdf, text/plain, application/vnd.google-apps.document, application/vnd.google-apps.presentation.
File Name	Ingest files matching specific file names.

You can also add custom query parameters. Refer to Google Drive API search terms for the full list of supported parameters and values.

Multiple rules and conditions

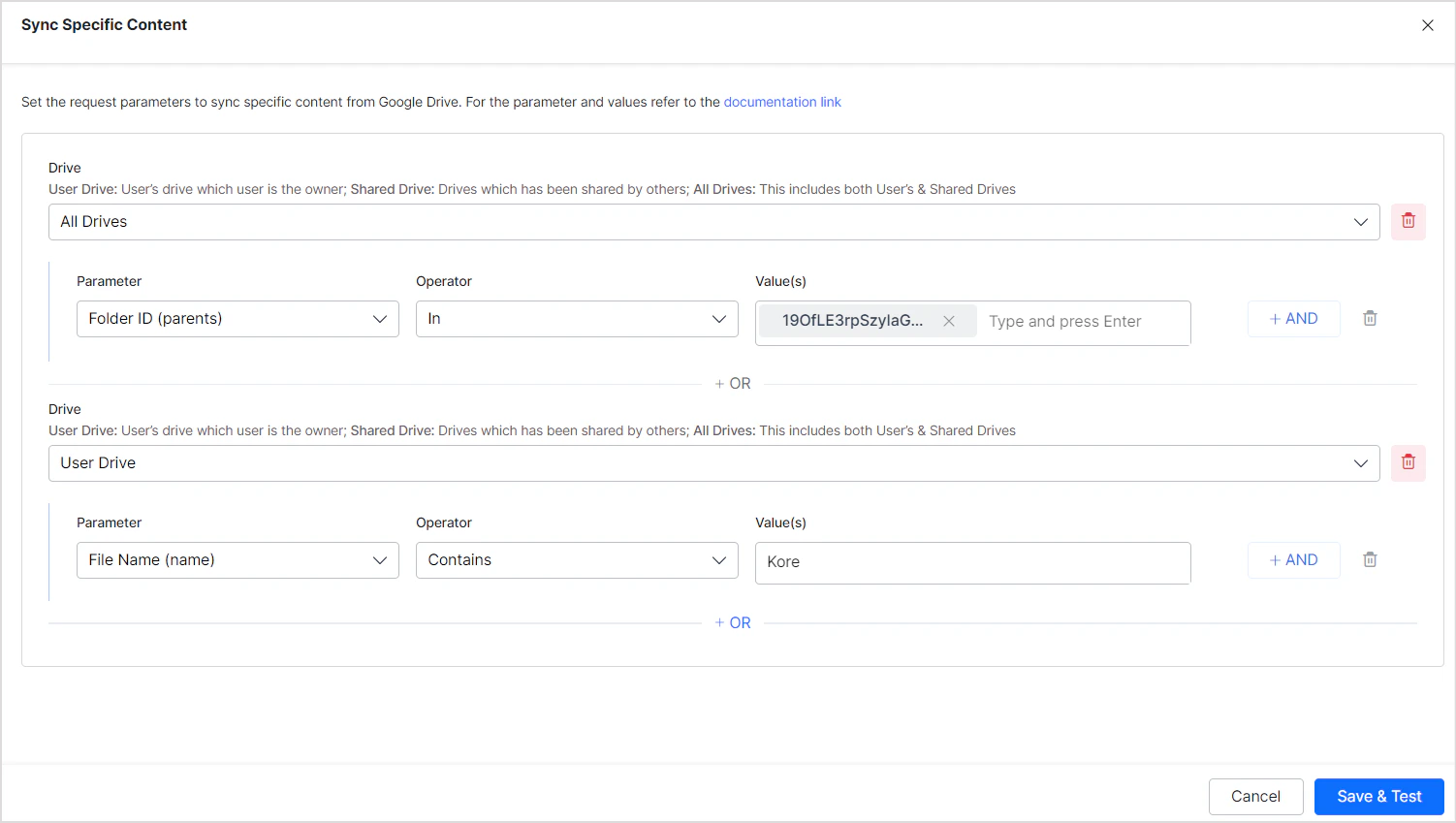

• Add multiple rules to a filter. For example, include all files from a specific folder and all files containing a keyword in the filename.

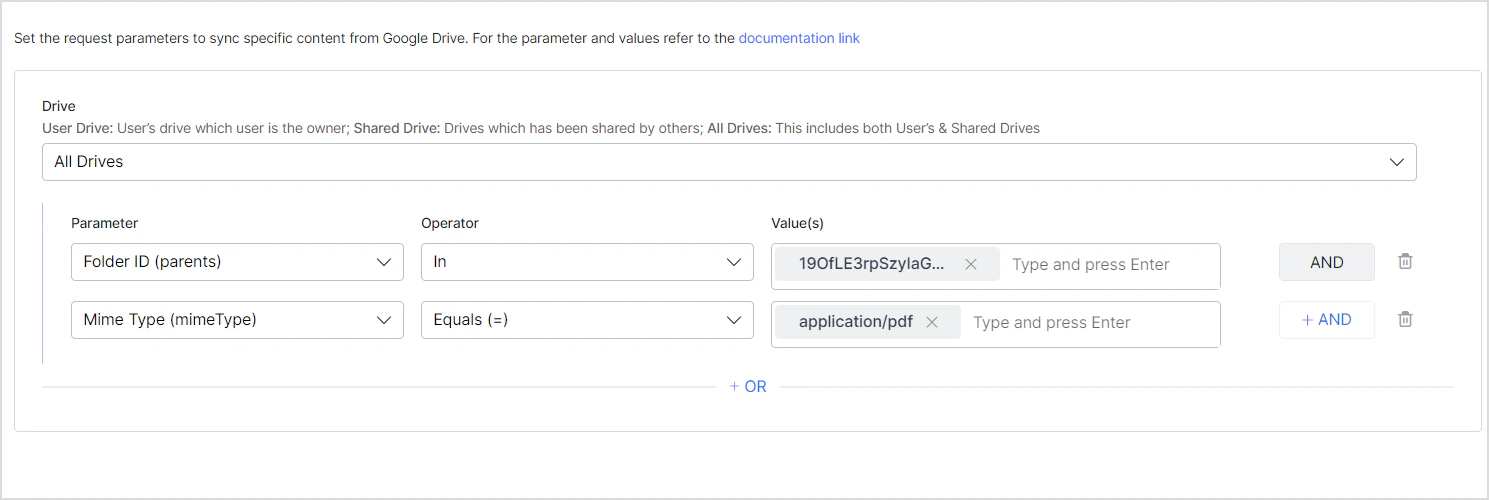

• Add multiple conditions to a single rule to narrow results. For example, ingest only PDF files from a specific folder.



Access Control

The Google Drive connector imports file permissions and access lists from Google Drive along with content, so Search AI returns answers only for files the requesting user can access.

File Permission Types

Search AI supports file-level permissions. The following access types are handled:

People with access

Search AI reads user information from each file. Any user with view or read access can access answers generated from that file.

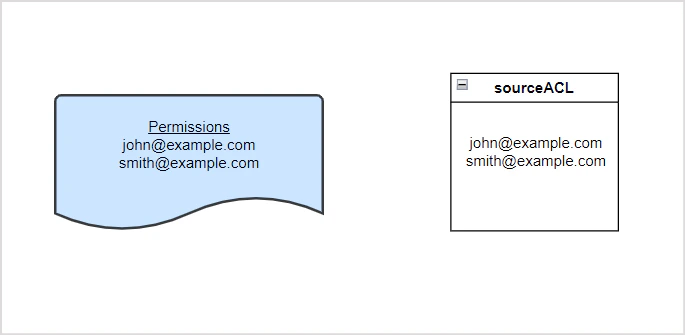

Example — two users with read access:

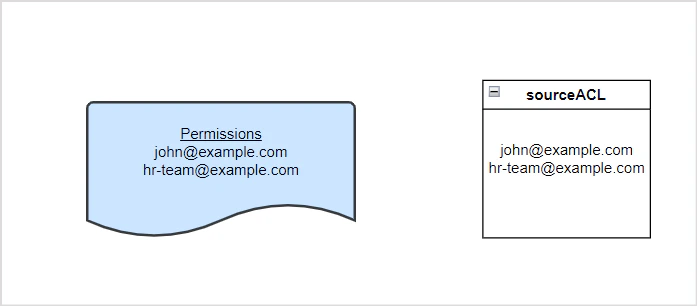

Example — a user and a user group with access (where [e-mail] is the permission entity for the group):

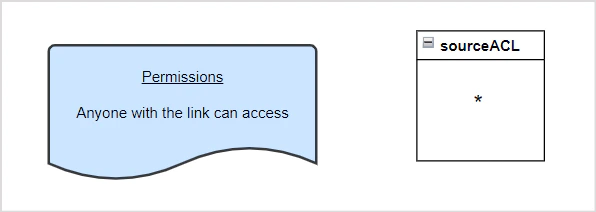

Anyone with link

Treated as public access. All users can access files with this permission type.

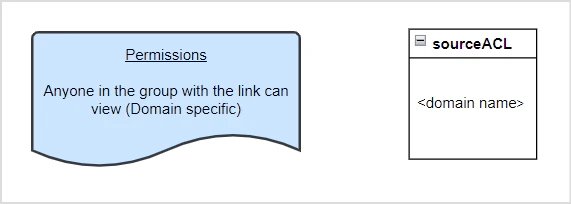

Domain-specific access

Search AI supports domain-scoped access and verifies user identity against the specified domain.

User Groups and Domain-Level Access

When a file is shared with a user group or domain, the group or domain name is stored as a permission entity in Search AI. You must associate individual users with that permission entity to grant them access.

Use the Permission Entity API to add user IDs to the corresponding permission entity.

Example: A file is shared with [e-mail]. This group is stored as a permission entity. To give the five HR team members access, use the Permission Entity API to add their user IDs to this permission entity.

Enabling or Disabling RACL

Configure access control on the Permissions and Security tab:

Option	Behavior
Permission Aware	Maintains default permissions from Google Drive
Public Access	Overrides Google Drive permissions; all users can access the content

You can configure this setting during initial connector setup or update it at any time on the Permissions & Security tab. Updated permissions apply to content ingested during the next sync.
